2013 CX-5 – CORROSION ON UPPER SHROUD CAUSING POOR APPEARANCE
APPLICABLE MODEL(S)/VINS
2013 CX-5 with VINs lower than JM3KE******152861 (produced before Oct. 1, 2012)
Corrosion on the upper shroud member where the hood stopper rubber makes contact (A).
The paint surface is damaged by the hood stopper rubber, which causes corrosion and a poor appearance concern.
A protection seal has been attached to the upper shroud member to prevent paint damage.
REPAIR PROCEDURE
- Open the hood and verify the customer concern.
- Replace the upper shroud member (A) with a modified one (with protection seal) according to the instructions on MS3 online or the Workshop Manual (section 09-10).
PART(S) INFORMATION
| Part Number | Description | Qty. | Notes |
| KD53-53-150B | Upper Shroud Member | 1 | Protection seal is included |
Bestseller No. 1

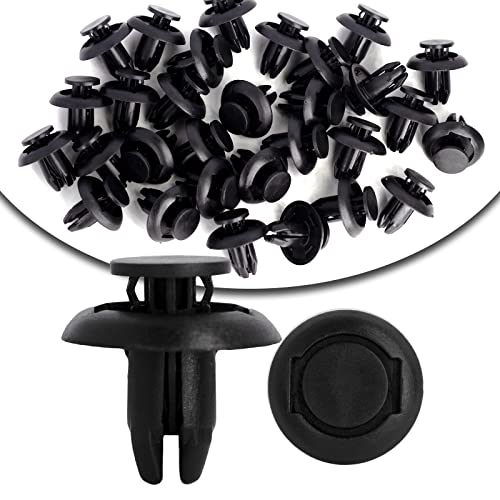

Gistilli 20pcs Bumper Engine Cover Fender Liner Splash Shield Push-Type Retainer Clip Compatible with Mazda B45A-56-146A 90118-WB048
- OEM Replacement Part Numbers: 90118-WB048, B45A-56-146A
- Product Size: Top head diameter: 11.5mm, Bottom head diameter: 20mm, Stem length: 13mm, Fits into 8mm hole.
- High Quality: These push-type retainer clips are made of durable plastic material to ensure long-term use, not easy to break or crack during use.
- Compatible:Fit for Mazda
3, 5, 6, CX-3, CX-5, CX-9, MX-5; Miata; Scion iA. - Note: Even if the product description says they fit your vehicle, before ordering these screws, measure the diameter of the space the fasteners go into.
3, 5, 6, CX-3, CX-5, CX-9, MX-5; Miata; Scion iA.
SaleBestseller No. 2
GOOACC 190 Pcs Car Retainer Clips & Fastener Remover - 18 Most Popular Sizes & Applications Auto Push Pin Rivets Set -Door Trim Panel Clips for Toyota, Honda, Nissan, Mazda - Bonus Fastener Remover
- 【MADE Of DURABLE NYLON】- Our plastic fastener auto clips perfect fit your parts very tightly，which is strong, robust and vibration resistant, would not break or crack easily.
- 【18 MOST COMMON SIZES】- Our auto Puch Type Retainer 190PCS Kit are available in 18 different sizes.Perfect replacement for broken retainers.Can meet the various needs of your car!
- 【SAVE YOUR TIME】- No need to go to a auto parts store and look for different fasteners.And comes with a plastic box with 18 compartments for organized storage.You can find it easily.
- 【TOUGH FASTENER REMOVER】- Durable Plastic and Metal material that has advantage of high abrasion resistance,allow you to quickly and easily remove car door panel and upholstery clips without causing damage to them.
- 【WIDE APPLICATION】- Professional push clips are widely used for car panel, door trim, bumper and fender for Toyota Honda Nissan Mazda etc. Please feel free to contact us if there's any issue.
Bestseller No. 3

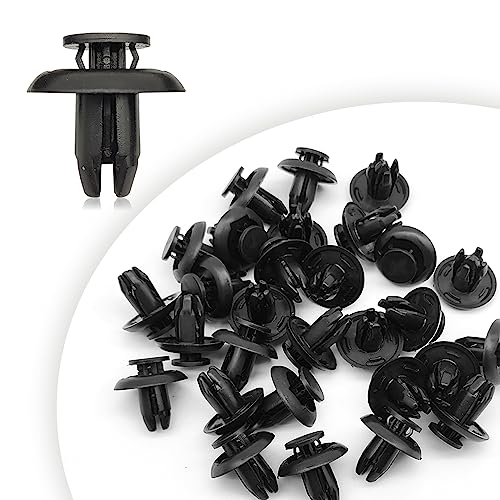

30pcs Bumper Engine Cover Fender Splash Shield Push-Type Retainer Clip Compatible with Mazda 3 5 6 CX-3 CX-5 CX-9 MX-5 Miata B45A-56-146A Toyota Scion 90118-WB048
