Rear Console Lid Does Not Lock – 2016 Mazda CX-5

Subject:

REAR CONSOLE LID DOES NOT LOCK

Bulletin No: 09-039/16
Last Issued: 06/14/2016



APPLICABLE MODEL(S)/VINS

2016 CX-5 vehicles with VINs lower than JM3KE******736277 (produced before October 31, 2015)



DESCRIPTION

Some vehicles may have a rear console lid that cannot be locked due to a broken latch (A).

rear console lid



The rear console lid latch may be broken by excessive force applied to the lid. To eliminate this concern, the shape of the rear console lid latch has been changed to increase its strength.

Customers having this concern should have their vehicle repaired using the following repair procedure.



REPAIR PROCEDURE

  1. Verify the customer concern.
  2. Remove the console lid and inner cover according to the instructions on MS3 online or the Workshop Manual (section 09-17 CONSOLE LID REMOVAL/INSTALLATION).

NOTE: Apply protective tape (A) to the tip of a screwdriver. Insert the screwdriver into the space between the console lid and the inner cover.

inner cover



  1. Pull out the pin using pliers.

Pull out the pin



  1. Remove the spring (A) and the console lid lock (B).

Remove the spring (A) and the console lid lock (B)



  1. Install a new (modified) console lid lock, then the other removed parts in reverse order.

NOTE: Verify that the lock can move smoothly before installing the console lid onto the inner cover.

  1. Verify the repair.



PART(S) INFORMATION

Description Qty. Notes Part Number

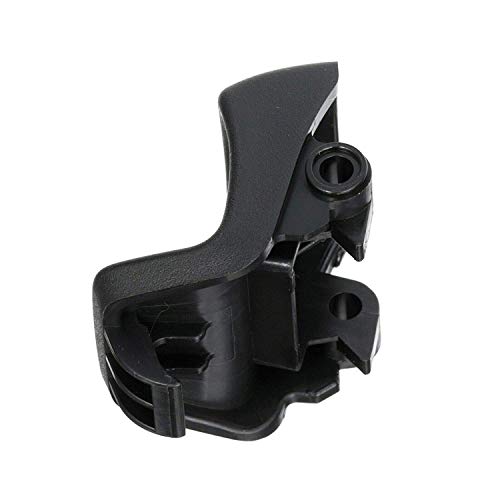

Lock, Console Lid 1 KA0G-64-45Y-02



WARRANTY INFORMATION

NOTE:

  • This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.
  • This repair will be covered under Mazda’s New Vehicle Limited Warranty term.
  • Additional diagnostic time cannot be claimed for this repair.
  • This TSB can be performed by D329 Mazda Certified Lube Technicians.
Warranty Type A
Symptom Code 42
Damage Code 9A
Part Number Main Cause KA0G-64-45Y-02
Quantity 1
Operation Number / Labor Hours: XXM3NXRX / 0.3 Hrs.
TSB can be performed by D329 Mazda Certified Lube Technicians: Yes

09-039/16

06/14/2016

https://www.nhtsa.gov/recalls?nhtsaId=10092782

https://www.nhtsa.gov/recalls?nhtsaId=10092041

https://static.nhtsa.gov/odi/tsbs/2016/SB-10092041-6903.pdf
