Rear Console Lid is Loose – 2014-2015 Mazda

“This site contains affiliate links for which OEMDTC may be compensated”

2014-2015 MAZDA6, 2014-2015 MAZDA3 – REAR CONSOLE LID IS LOOSE

APPLICABLE MODEL(S)/VINS

2014-2015 Mazda3 Japan built vehicles with VINs lower than JM1 BM ****** 255207 (produced before January 12, 2015)

2014-2015 Mazda6 vehicles with VINs lower than JM1 GJ ****** 186473 (produced before May 14, 2014)



Loose rear console lid (A).

rear console lid (A)



This may be caused by hinge pins coming partially off (B) or completely off.

hinge pins



REPAIR PROCEDURE

  1. Remove the rear console panel by pulling in the direction of the arrows shown below.

NOTE: Begin by pulling from the bottom to detach inner attachment clips (C), then continue pulling from the top to detach inner attachment clips (D).

Rear Console Panel

  1. Re-install the rear console lid pin(s) back to the original position.

 rear console lid pin

  1. Mazda3 and Mazda6 without ventilation, install a new rear console panel. (See PART(S) INFORMATION)

NOTE: The shape of the rear console panel has been changed, by adding a stopper rib to prevent the pin from coming off.

  1. Mazda6 with ventilation, install a new rear console panel (see PART(S) INFORMATION) and reuse the rear and front ducts (A).

Rear Console Panel

NOTE: The shape of the rear console panel has been changed, by adding a stopper rib to prevent the pin from coming off.



Rear Console Panel with Ventilation Repair Information

  • Remove the 4 screws from the front and rear ducts.
  • Remove the front duct (A) from the rear console panel (B).

Rear Console Panel

  • While opening both side ends of the rear console panel, disengage the tabs (C) of the rear duct (D) from the rear console panel, then remove the rear duct.

tabs (C)

  • Install the front duct to the new rear console panel using the following steps.
  1. Align the tab of the rear console panel and the hole of the rear duct.
  2. Align tabs of the rear duct and holes of the rear console panel.
  3. Align tabs of the rear console panel and holes of the rear duct.
  4. Push the rear duct (D) to engage the tabs into the rear console.

tabs

  • Install the front duct to the rear console panel in reverse order of removal.
  • Install the 4 duct screws.



PART(S) INFORMATION

Model Part Number Description Qty. Notes
Mazda6 GHR1-64-47Y-02eBay Rear Console Panel 1 With Ventilation

Rear Console Panel With Ventilation

Mazda6 GHP9-64-470-02eBay Rear Console Panel 1 Without Ventilation

Rear Console Panel Without Ventilation

Mazda3 BHN1-64-471-02 Rear Console Panel 1






SaleBestseller No. 1
Bestseller No. 2
Car Center Console Lid Lock for Mazda CX-5 KE 2013-2016,KA0G6445YA02,KA0G-64-45YA-02,Center Console Latch Lid Lock Replacement for Mazda CX-5 KE,Armrest Lid Latch Replacement for Mazda Series vehicles
  • 【For Mazda Centre Console Latch Lock】 The console lid lock is made of high-quality material for longer service life, and long-lasting use, making the console locked again.
  • 【Compatible with Mazda cx 5 Accessories】The parts replacement number of this auto center console lid lock is fit for Mazda 2013-2016 CX-5 KA0G-64-45YA-02, please check before purchasing.
  • 【Center Console Replacement Latch for Mazda】 Easy installation, needs to remove the underneath board to expose the old latch and replace it, no need to drill. A perfect replacement, vehicle try-on testing has been conducted to ensure a trouble-free installation.
  • 【Benefits of the Console Lock Cover】 Direct replacement for a perfect fit, mount between center armrest pad and bracket. designed as an exact match for the original to blend in with the overall aesthetic appearance of your interior.
  • 【Package Contents of the Armrest Lid Latch Replacement】 This latch comes with 1 mazda cx5 center console latch. Please check before purchasing.
SaleBestseller No. 3
Gztoyu Center Console Lid Latch for Mazda CX5 KE 2013-2016, Car Center Console Latches Replacement KA0G-64-45YA-02
  • 🌎 Center Console Latch Replacement Latch for Mazda: This auto center console lid latch is fit for Mazda CX-5 2013-2016 KA0G-64-45YA-02, please check before purchasing.
  • 🌎 A Perfect Center Console Latch Replacement: Easy installation, just remove the underneath board to expose the old latch and replace it, no need to drill. Latches vehicle try-on testing has been conducted to ensure a trouble-free installation and it makes your armrest storage more organized.
  • 🌎 For Mazda CX5 Center Console Latch Lock: Center Console lid lock made of high-quality material for longer service life, reliable and durable for long-lasting use, making the console locked again.
  • 🌎 Package Contents of the Armrest Lid Latch Replacement: 1 x Center Console Latch for Mazda cx5 accessories.
  • 🌎 Contact Us: If you have any questions with our center console latch replacement , please contact us in time, we will solve the problem for you and bring you a pleasant shopping experience.
Bestseller No. 4

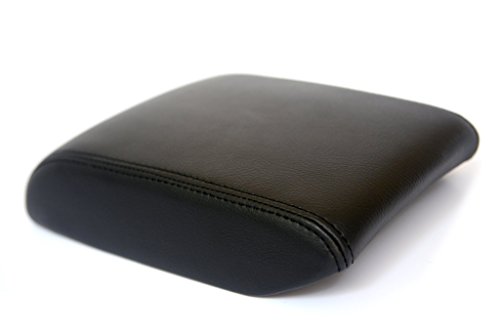

KarDesigners Fits 2014-2016 Mazda 6 Synthetic Black Leather Center Console Lid Armrest Cover Cover (Skin Only)
